Architecture of Up ! Application System
Static View

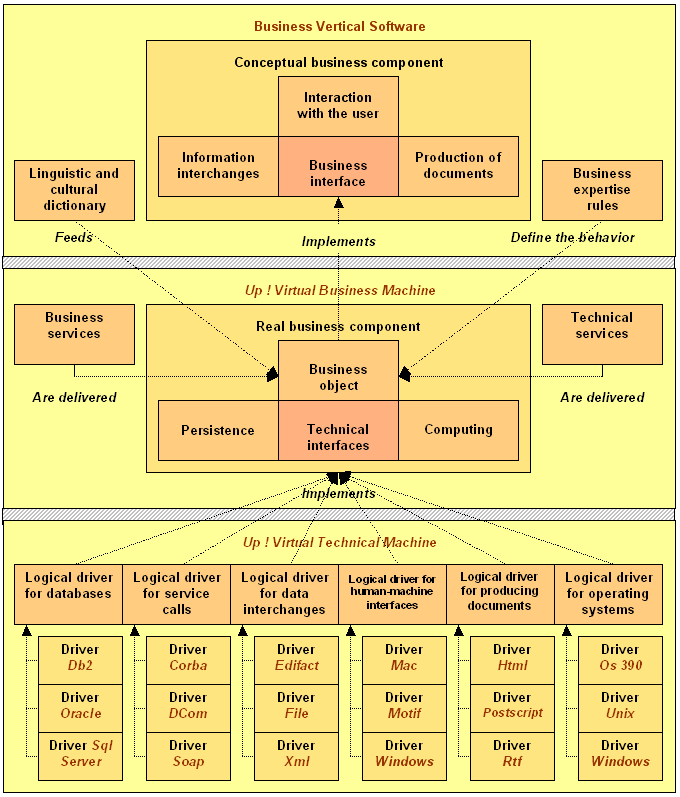

The following diagram introduces you the static view of a micro-application built with Up ! Application System.
Dynamic View

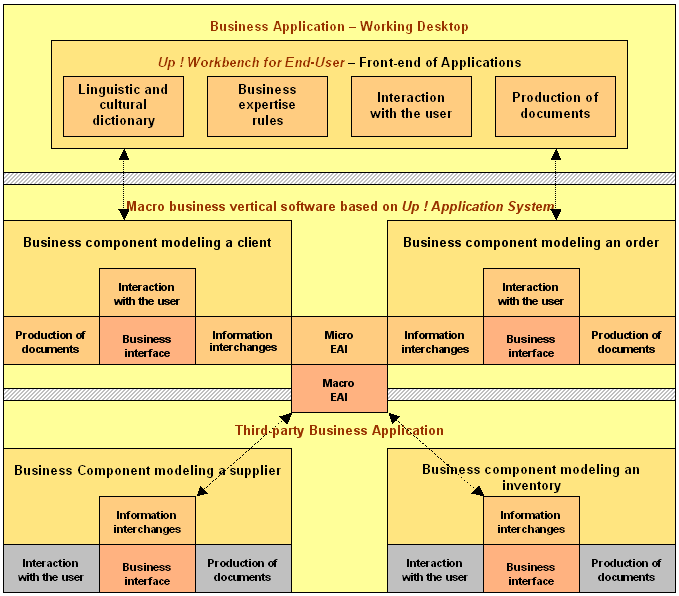

The following diagram introduces you the dynamic view of a micro-application built with Up ! Application System.
The business components coming from Up ! Virtual Business Machine banks are integrated through a micro Enterprise Application Interface (EAI) inside Up ! Application System.
The business components coming from the embedding of the existing are integrated through a macro Enterprise Application Interface (EAI) outside Up ! Application System that is based on:
- For service calls.
C++, Corba, Com, Java or private APIs of vertical software such as SAP's ALE / RFC.
- For data interchanges.
Edifact, structured files, Xml or private formats of vertical software such as SAP's IDoc.
Each interface of a business component coming either from a bank of Up ! Virtual Business Machine or the embedding of the existing can be thus exposed according to these technical standards to plan the logical organization of the information system.
IT Processes

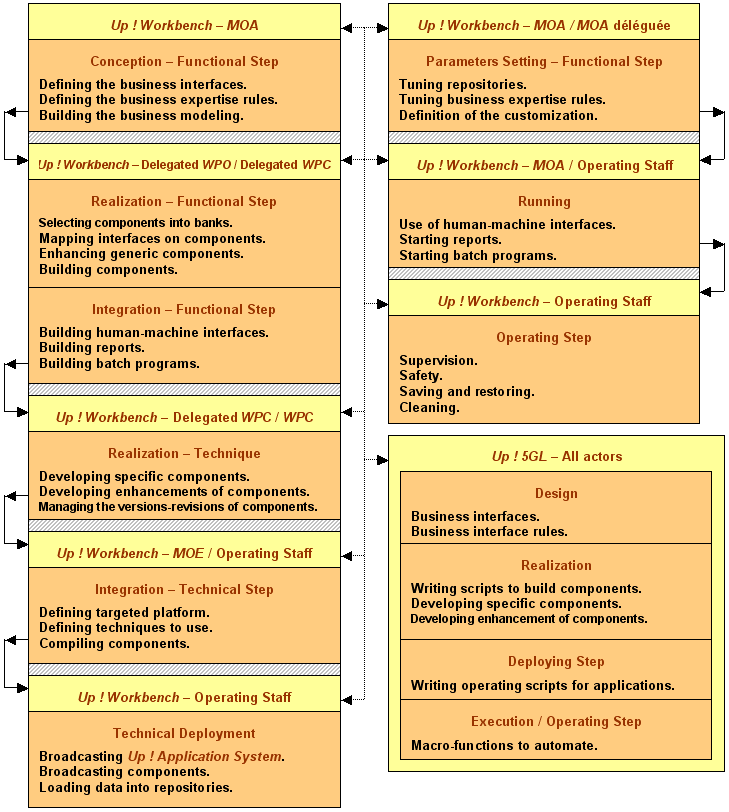

The following diagram introduces you the process chain that impacts the life cycle of a application by the use of Up ! Workbench and Up ! Fifth Generation Language.
